CUBIC PACKAGE DESIGN PLATFORM

AR Platform for Packaging Design

CUBIC is a packaging design platform that helps everyone to digitally create and instantly visualize 3D packaging design in the physical world with AR technology.

Without any 3D design skills required, CUBIC empowers individuals to professionally craft not only 3D packaging models for digital spaces but also CAD-compatible packaging models for industrial-scale applications.

Design Package for free. No credit card required.

Next version will be released in

Days

Hours

Minutes

Seconds

CUBIC Highlighted Features

AR Tech Utilization

Leverage AR Technology
to make product designs
visible in real 3D space

Instant Visualization

A variety of product designs can be instantly visualized in the same physical space real-time on mobile

CAD-Metaverse Integration

Packaging designs in the platform can be exported to both CAD-compatible software and metaverse ecosystems

AR Technology Utilization

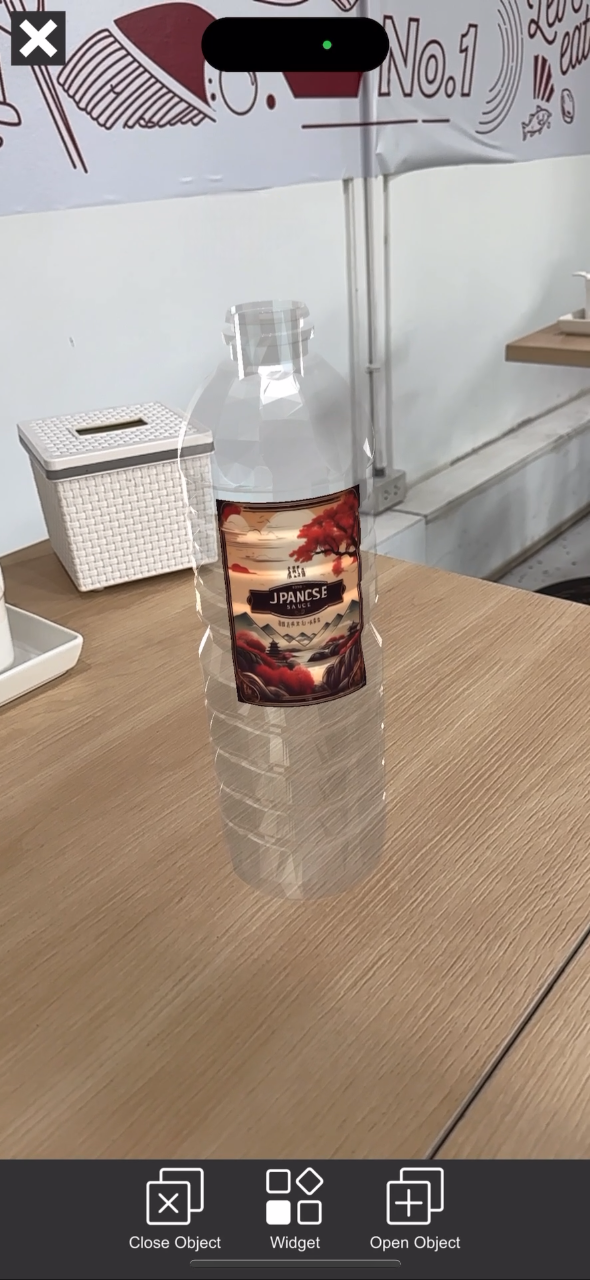

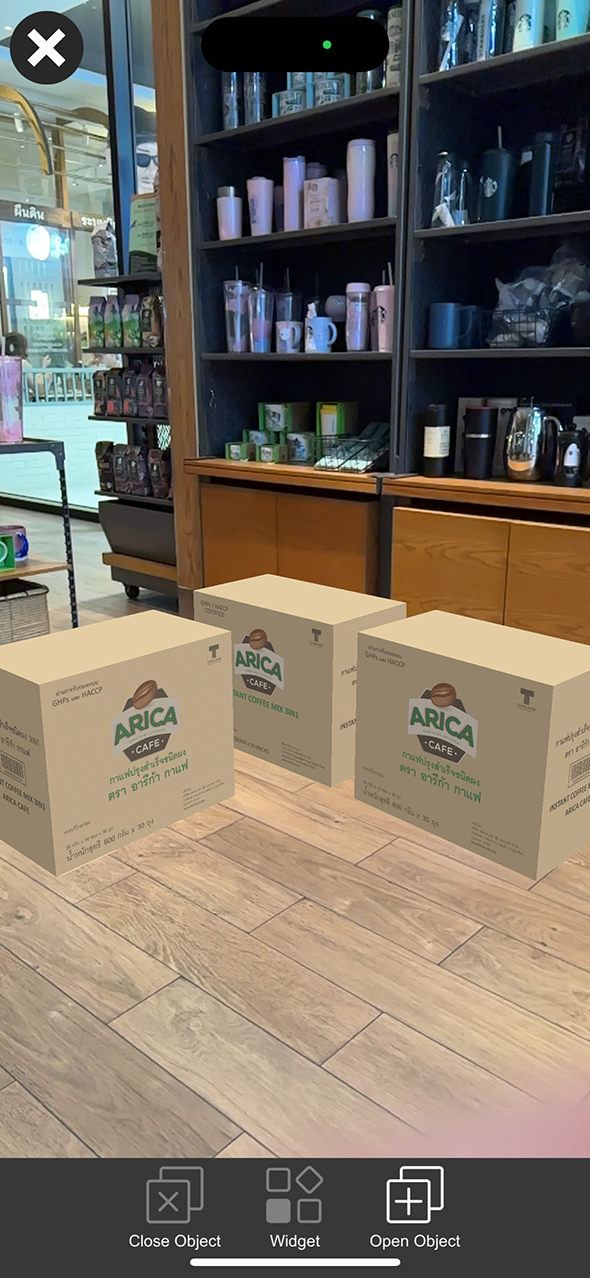

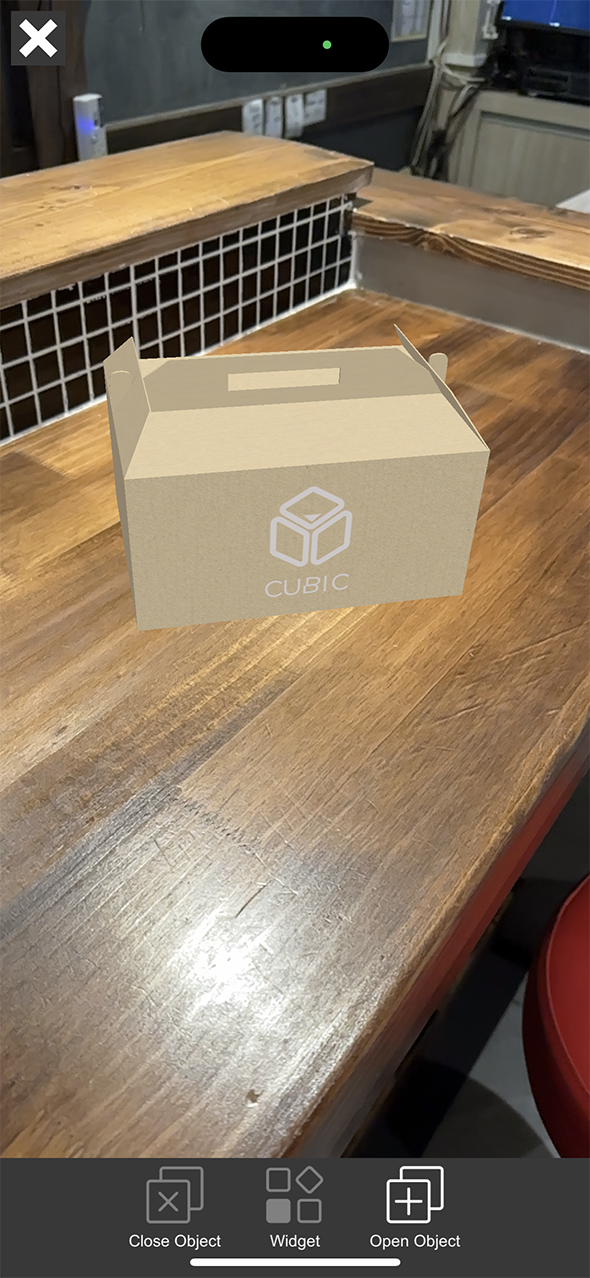

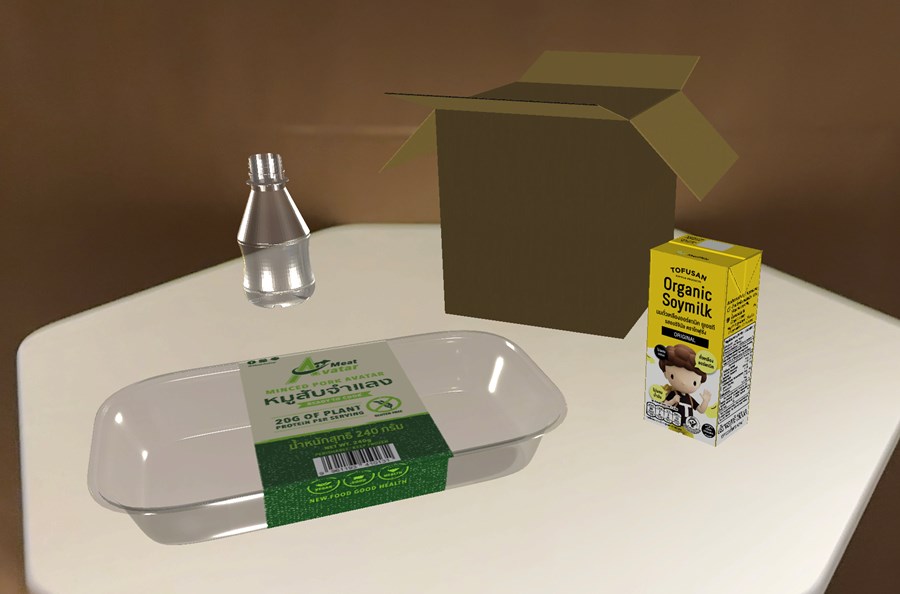

CUBIC allows user to experience packaging design in real-world environment using augmented reality technology. Packaging designer can compare and contrast their design with other models side-by-side in the same physical space to select the most appropriate packaging design for given requirements to gain a competitive advantage in the real market.

Video #1 : Viewing Packaging Models
in Physical Space

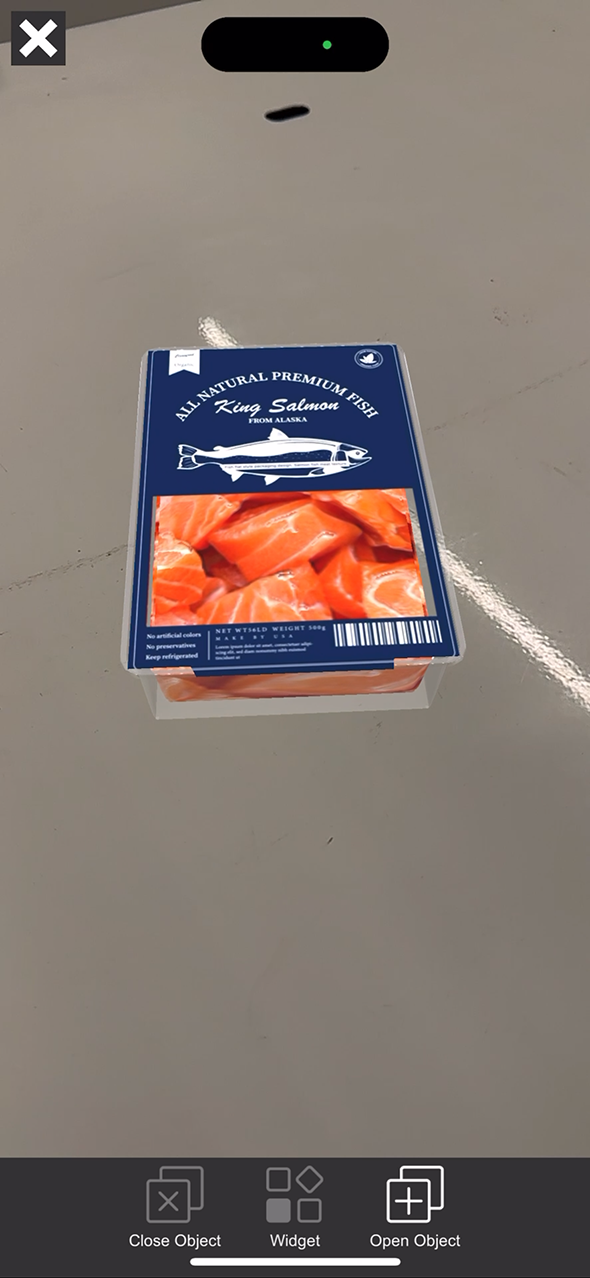

Video #2 : Inserting Graphic Labels on Packaging Surfaces

Instant Visualization

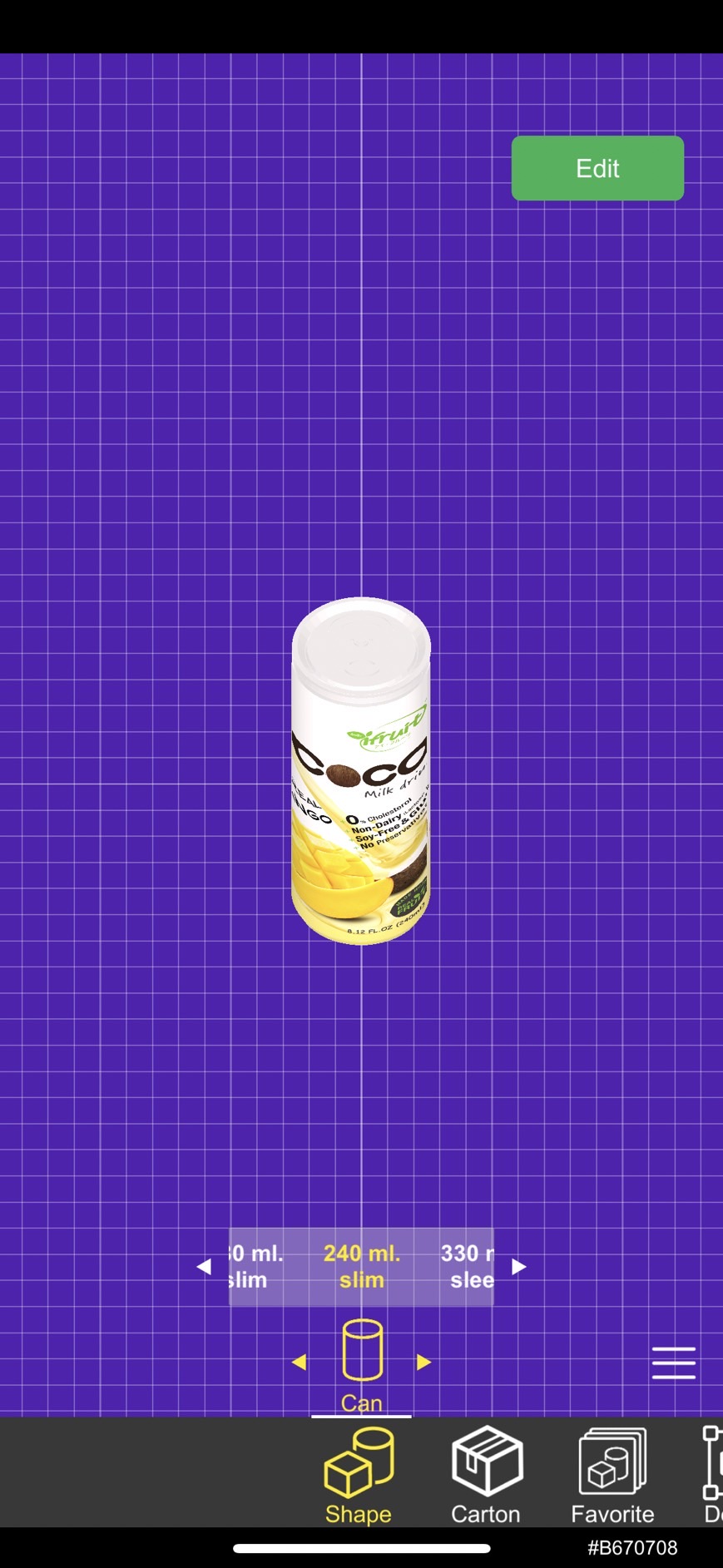

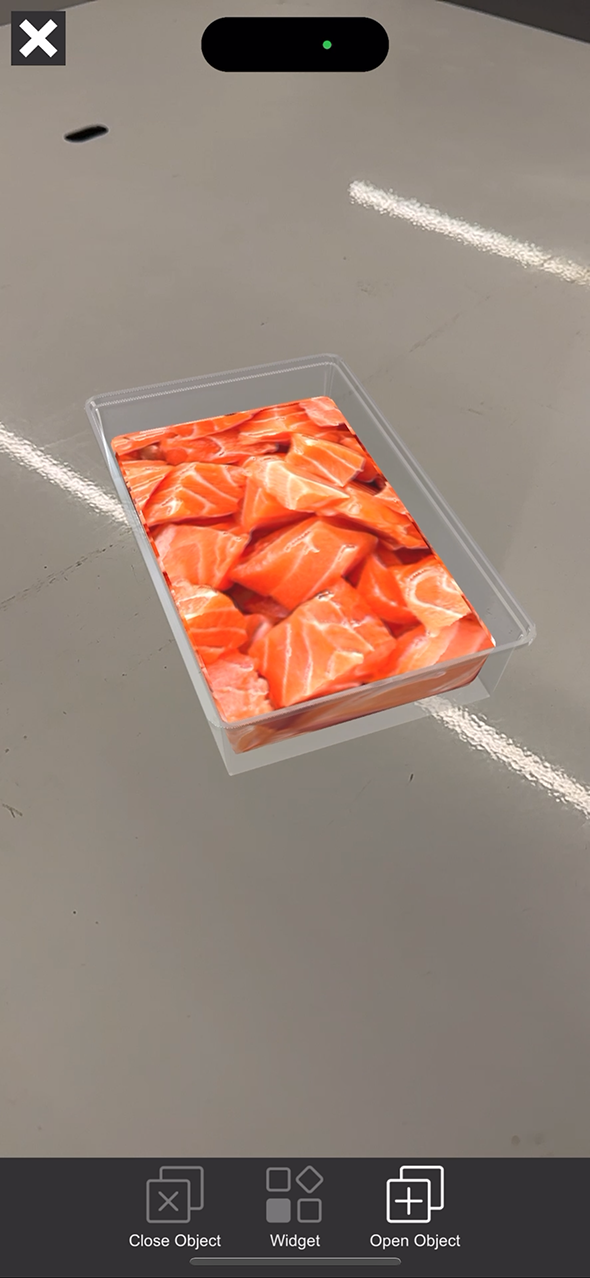

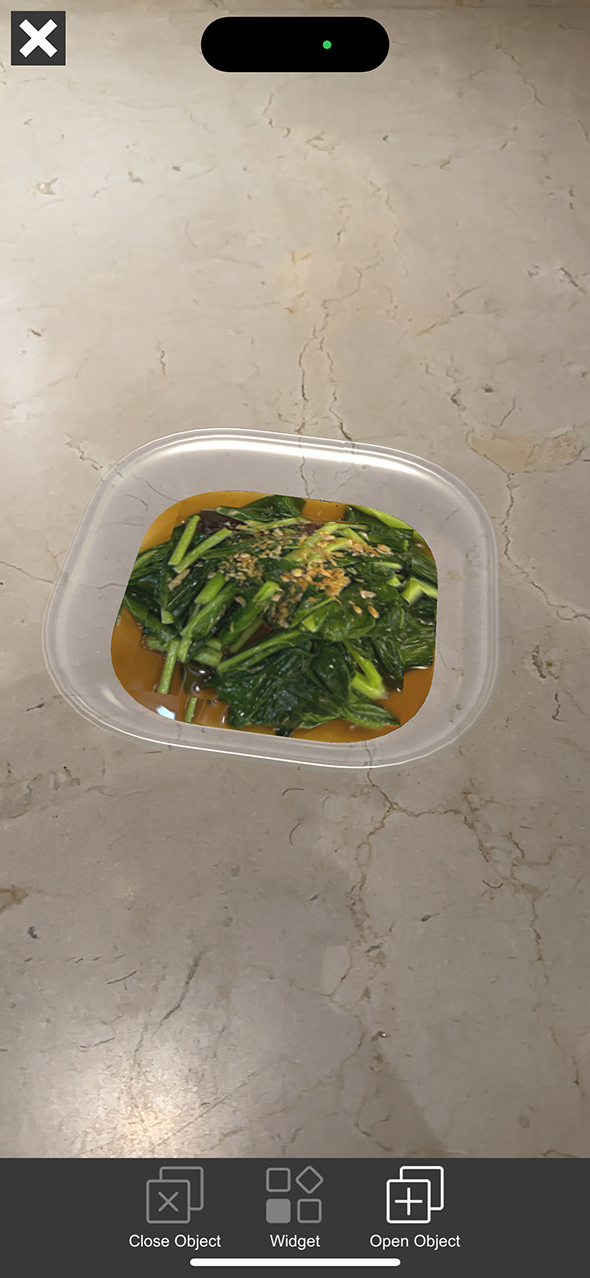

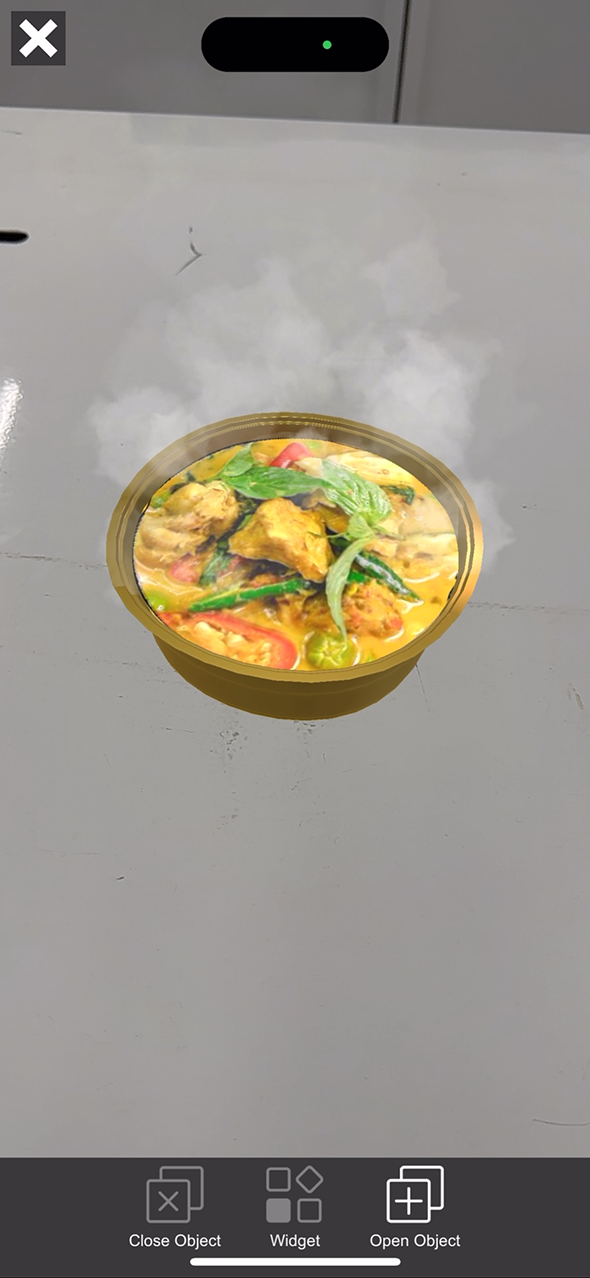

Along with the real-time visualization in the design mode, user can insert and replace graphical labels, a nutrition fact label and even food photo on the surfaces of the selected package design. This instant feedback helps packaging design collaborators grasp a quick picture of the package design before going to the manufacturing stage.

Plus, the real-time visualization in the AR mode helps eliminate miscommunications in the packaging design process by offering visual feedback for everyone in the packaging design project to see the same picture in the real physical space.

In addition, CUBIC empowers all collaborators in the design process to modify the packaging design further right on their smartphones and can share the saved version in the favourite list to other collaborators via QR card. So, everyone is at the same pace and speaks the same language.

CAD-to-Metaverse Integration

CUBIC provides seamless integration with the digital spaces in Metaverse ecosystem as well as industrial design software through automatic file conversion system.

Currently, CUBIC platform can export packaging design models as :

.STL file for 3D printing services

CAD-Compatible file for subsequent CAD model design

.DXF or .AI file for furter paperboard manufacturing design

.GLB file for the digital spaces in the metaverse ecosystem

Video #3 : CAD Export to Web Viewer

Video #4 : GLB Export to Web Viewer

Royalty-Free Packaging Model Categories

CUBIC platform offers royalty-free packaging models including rigid plastic packaging, carton packaging, aluminium packaging and paper packaging for users to select and modify further to meet packaging design requirements.

Video #5 : Match the color with physical translucent object

Video #6 : Match the color with the physical solid object

Realistic Colorization

Because all the packaging models in the CUBIC platform has initially set to a system color, CUBIC users can arbitrarily select and instantly visualize a favourable color from 16-bit color palette for their packaging model in the AR mode.

Plus, the real-time color picker in the AR mode help platform users to match the color in the user environment to the virtual packaging model with a few clicks. Also, the users can create multiple models with a wide range of color variations to compare and contrast in the AR mode, which will assist users to precisely choose the best color for the packaging products.

Please note that graphics and products in theses videos are for technology demonstration purpose only, which is not intended to infringe any copyrights and trademarks.

Packaging Design Compatibility Test

CUBIC platform empowers users to examine how the digital package design physically fit with other existing packages in their packaging design system through AR technology and physics simulation together.

With this feature, you can ensure that the handling process will run smoothly as simulated in the real working environment when the designed packages are manufactured and used in reality.

Video #7 : Packaging Design Test on Plastic Bowl

Video #8 : Packaging Design Test on Paper Box

Video #9 : Measuring Storage Space with AR Scan

Video #10 : Optimize Storage with Auto-Product Arrangement

Storage Space Measurement and Multi-Size Product Arrangement

CUBIC leverages AR technology to help calculate storage volume from truck containers to warehouses areas. So, packaging designers can find optimal form of storages as well as estimating the logistics cost before selecting the most appropriate form of package design.

With this feature, CUBIC empowers platform users to examine how the package design physically fit with the targeted storage space to ensure the storing process will go smoothly as if users work in the real environment.

AR Catalog for B2B2C Model

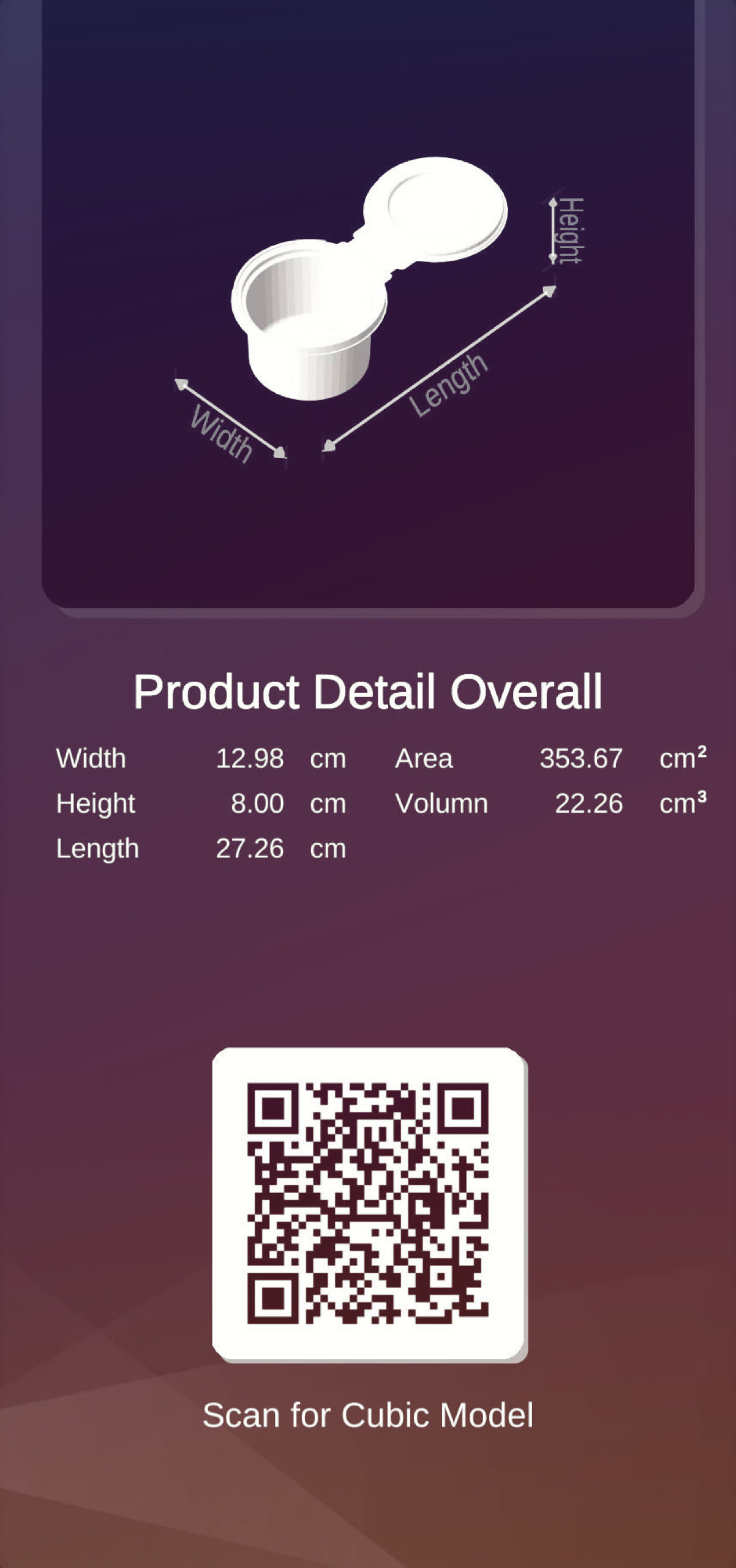

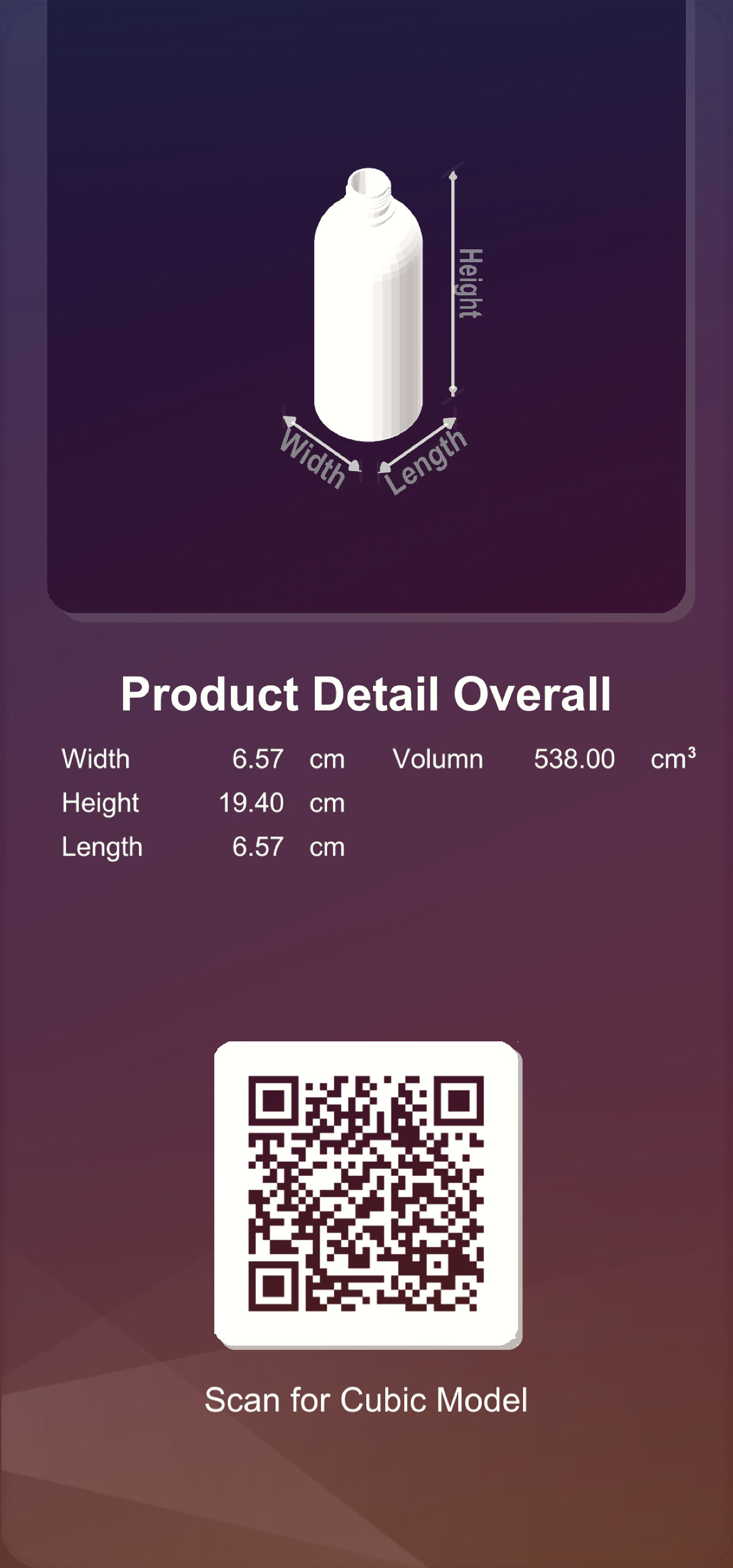

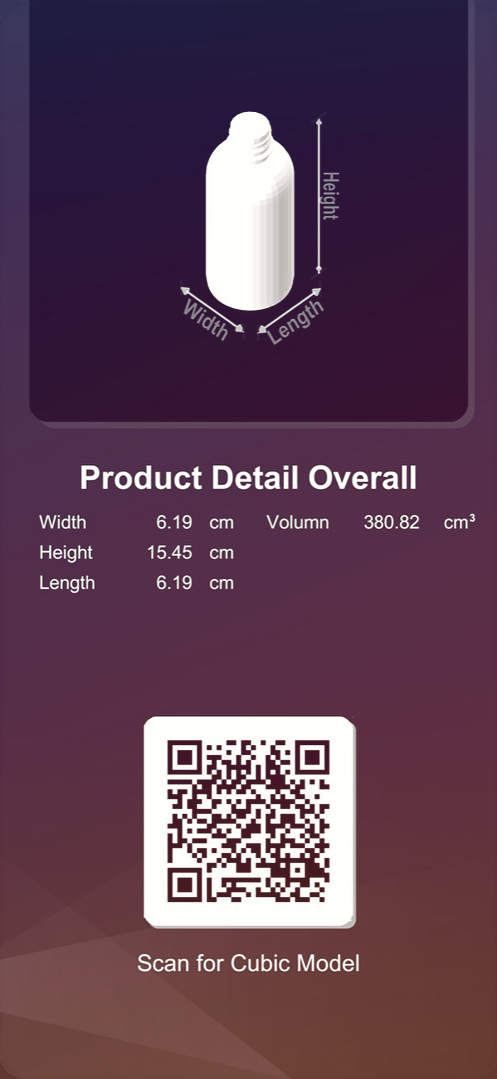

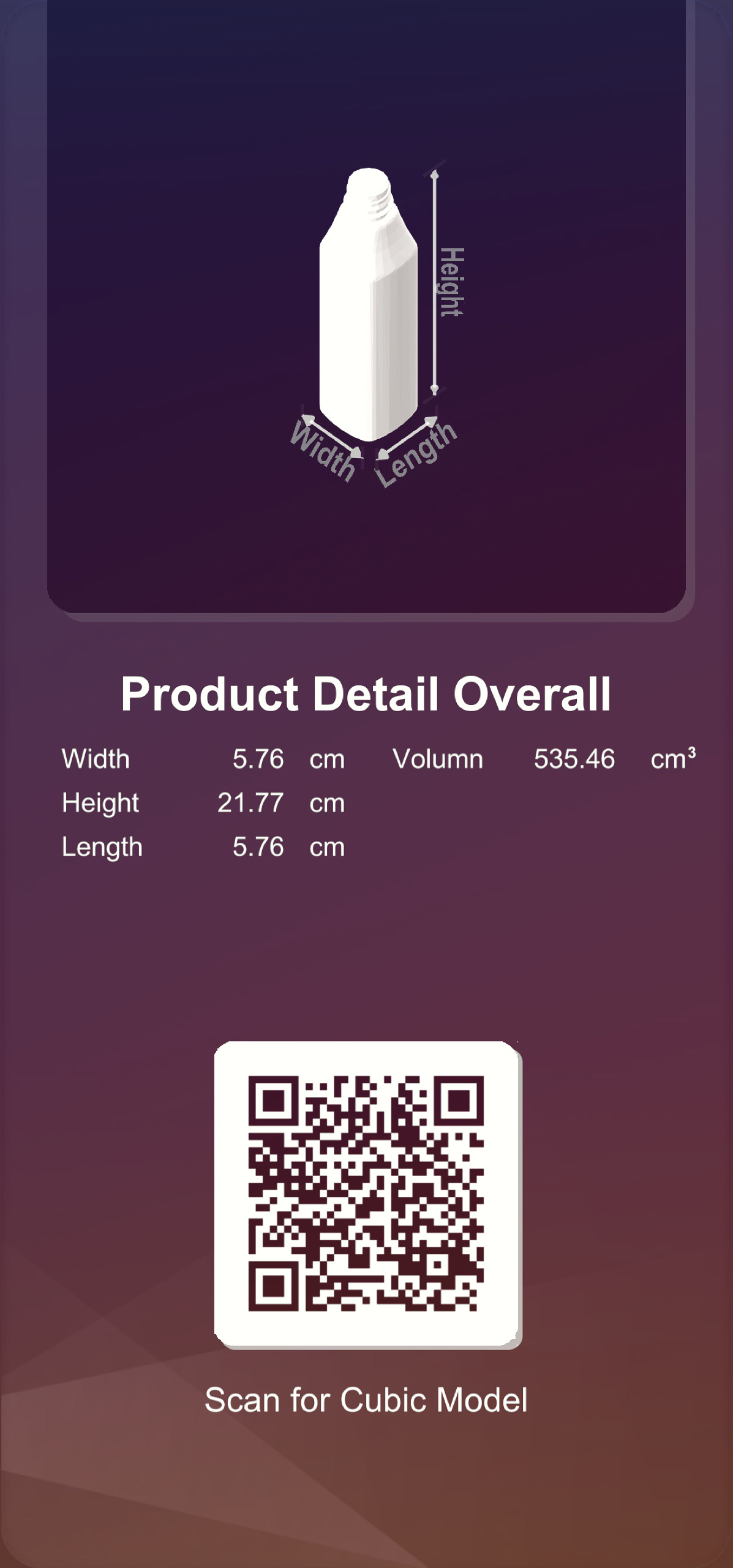

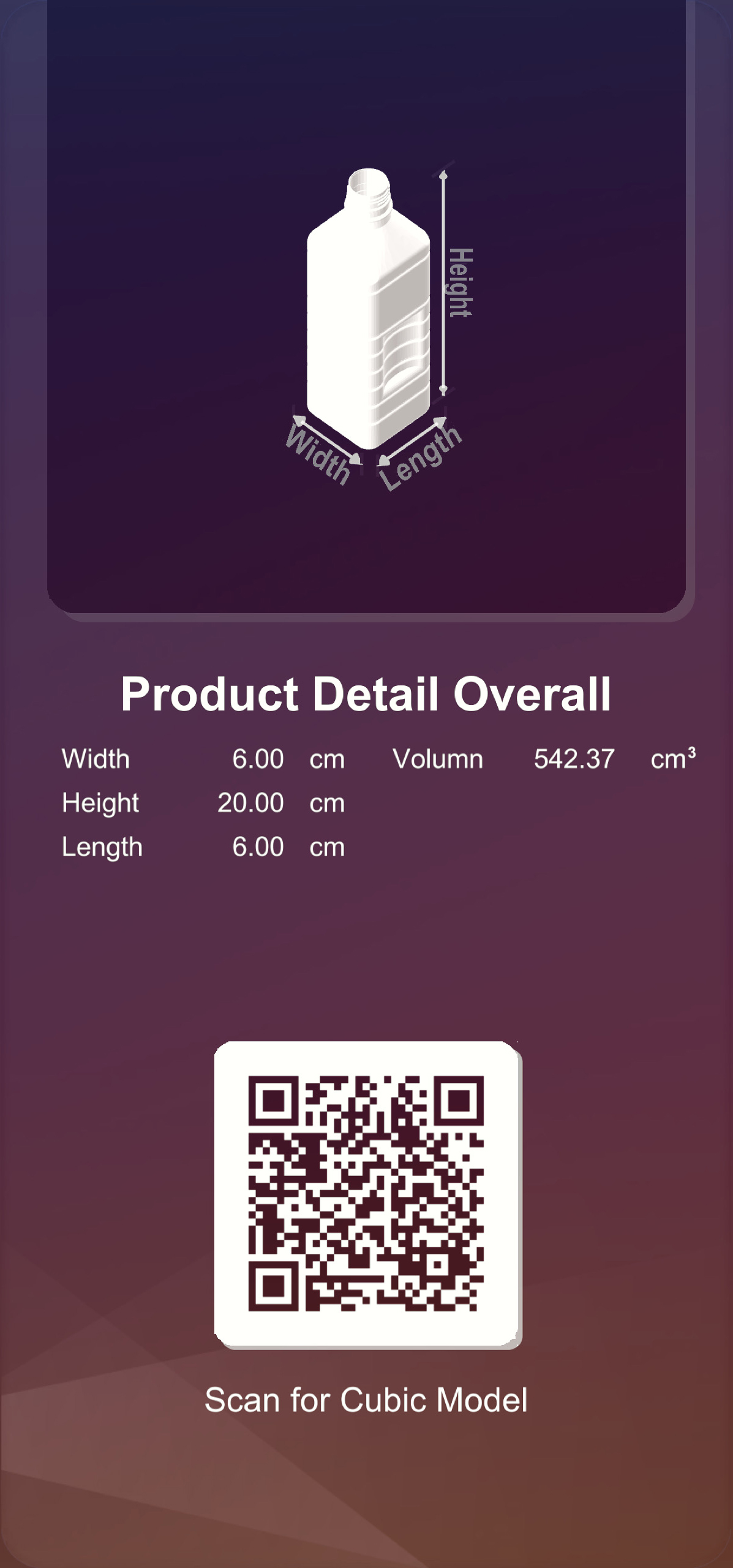

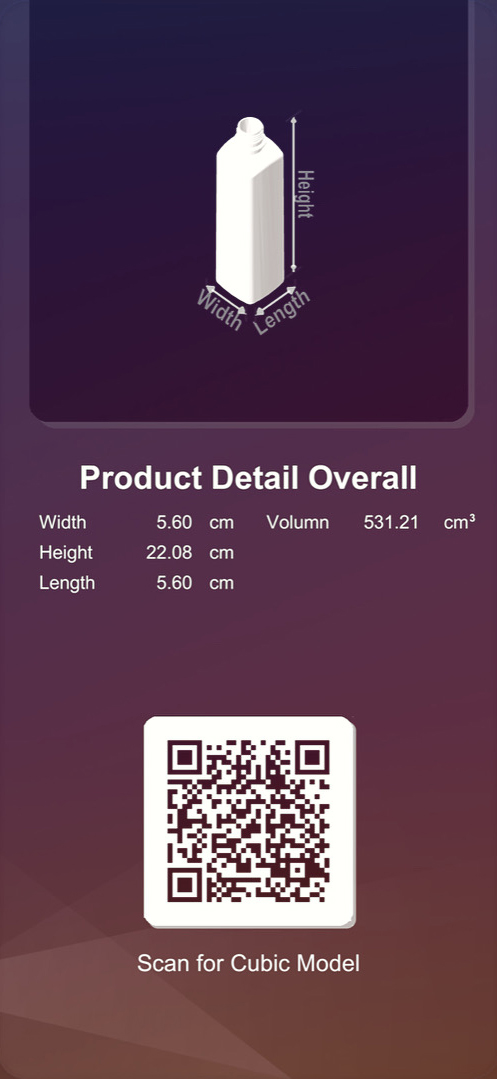

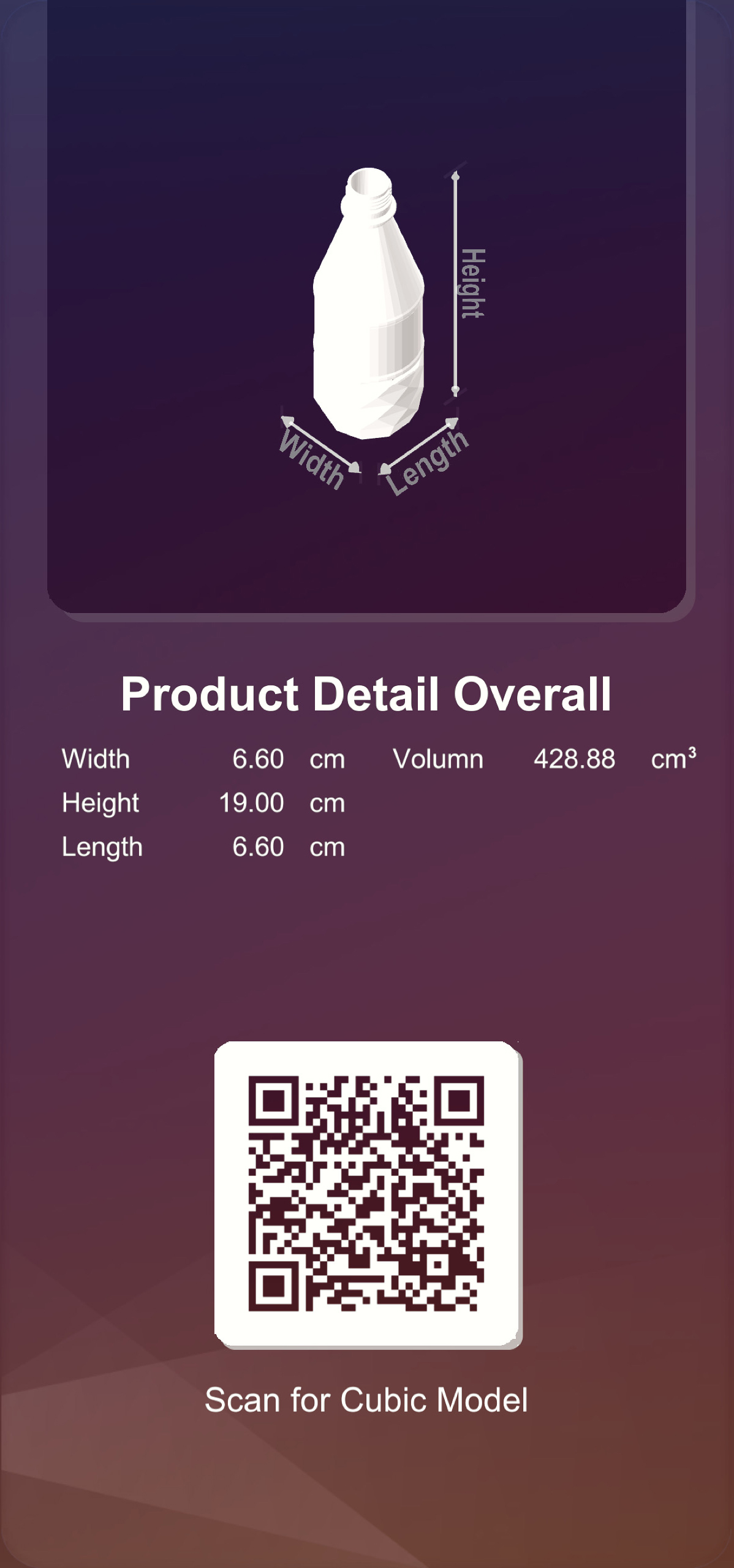

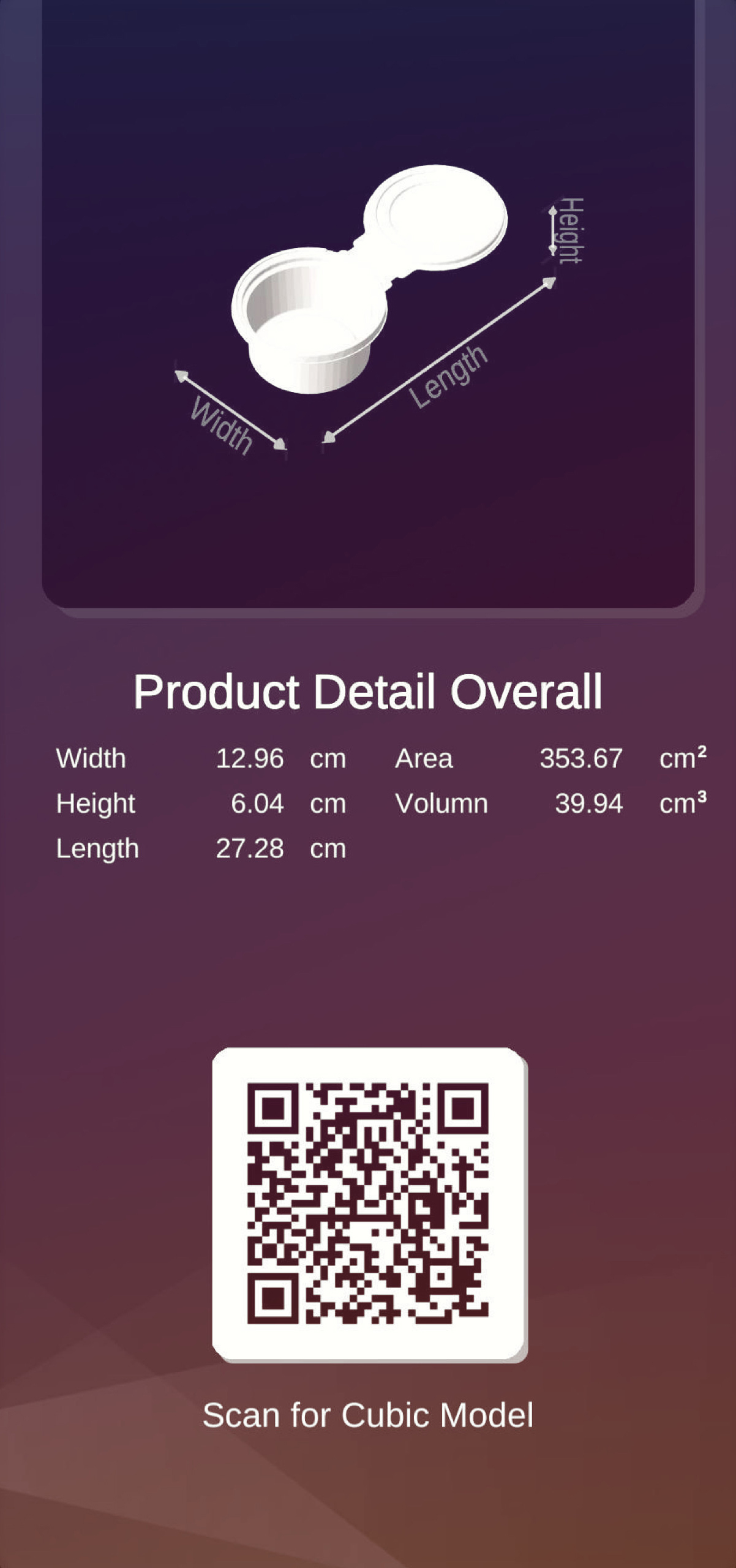

CUBIC allows platform users to import any existing CAD-compatible objects into the platform in order to generate unique QR cards as the catalog of their products.

So, their customers can scan the QR code and instantly visualize the 3D models of the products through AR technlogy right on their smartphones.

Besides, customers can save all the models in their account and can visualize all the models in AR mode at once to compare the models side-by-side.

Video #11 : Importing CAD-Compatible Models from QR Card

Follow Sample AR Catalog on Instagram
@cubicpackagedesign

Follow Use Cases and How-To Videos on Tiktok
@cubicpackagedesign

Follow Feature Updates and News on Facebook
https://www.facebook.com/cubicdesignplatform/

Video #12 : CUBIC Platform Likage to Experienced Manufactures

Manufacture Linkage

CUBIC connects packaging design collaborators to selective manufactures who can reify the packaging concepts to industrial-scale packages with the minimum order quantity at an affordable price point :

Minimum order quanity of paperboard packaging can be as low as 100 boxes per production order
Minimum order quanity of plastic packaging can be as low as 50,000 units per production order

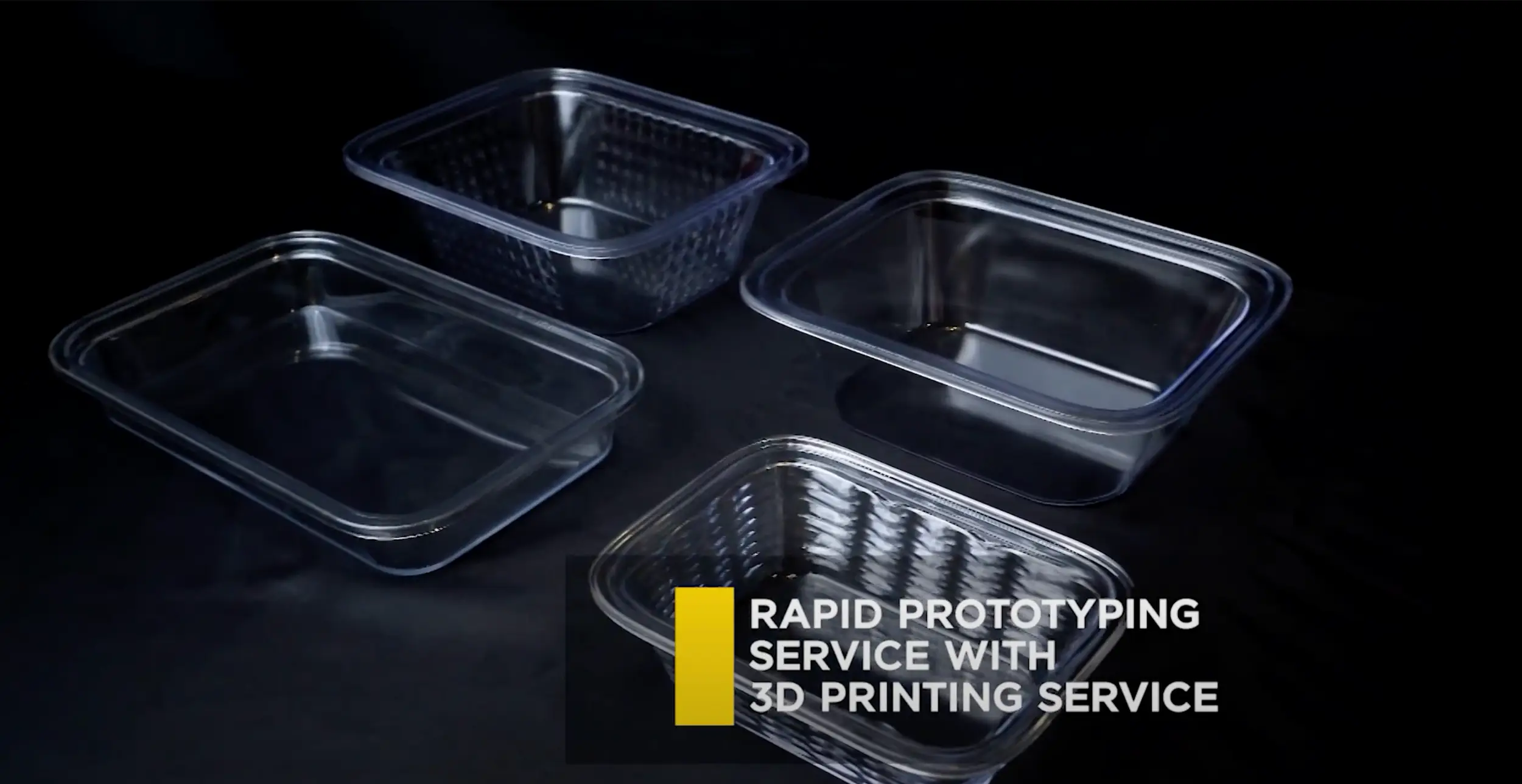

3D Printing Services

CUBIC platform also provides additional 3D printing services upon request. By sharing QR card of the desired packaging model to the CUBIC team, the 3D printed model will be shipped to your specify location with an affordable cost in a few weeks (depending on the shipping location.)

CUBIC Plan and Features

Monthly

Yearly

Starter

The beginning of great packaging design journey

Get Started

Save up to 4 Models

Visualize Models with AR Tech

GLB File Export to Metaverse*

STL File Export for 3D printers**

DXF and AI File Export for Manufacturing**

CAD File Export for Manufacturing**

Amateur

The essentials to explore creative packaging concepts

Upgrade Now

Save up to 9 Models

Visualize Models with AR Tech

GLB File Export to Metaverse*

STL File Export for 3D printers**

DXF and AI File Export for Manufacturing**

CAD File Export for Manufacturing**

Designer

Best value for packaging design project collaborators

Upgrade Now

Save up to 15 Models

Visualize Models with AR Tech

GLB File Export to Metaverse*

STL File Export for 3D printers**

DXF and AI File Export for Manufacturing**

CAD File Export for Manufacturing**

Import CAD model for AR catalog***

Professional

The perfect companion for packaging design professionals

Upgrade Now

Save up to 25 Models

Visualize Models with AR Tech

GLB File Export to Metaverse*

STL File Export for 3D printers**

DXF and AI File Export for Manufacturing**

CAD File Export for Manufacturing**

Import CAD model for AR catalog***

Storage Space Measurement

Physics Mode for Packaging Test

Starter

The beginning of great packaging design journey

Free Forever

Get Started

Save up to 4 Models

Visualize Models with AR Tech

GLB File Export to Metaverse*

STL File Export for 3D printers**

DXF and AI File Export for Manufacturing**

CAD File Export for Manufacturing**

Amateur

The essentials to explore creative packaging concepts

Free 2 Months

Upgrade Now

Save up to 9 Models

Visualize Models with AR Tech

GLB File Export to Metaverse*

STL File Export for 3D printers**

DXF and AI File Export for Manufacturing**

CAD File Export for Manufacturing**

Designer

Best value for packaging design project collaborators

Free 2 Months

Upgrade Now

Save up to 15 Models

Visualize Models with AR Tech

GLB File Export to Metaverse*

STL File Export for 3D printers**

DXF and AI File Export for Manufacturing**

CAD File Export for Manufacturing**

Import CAD model for AR catalog***

Professional

The perfect companion for packaging design professionals

Free 2 Months

190

Upgrade Now

Save up to 25 Models

Visualize Models with AR Tech

GLB File Export to Metaverse*

STL File Export for 3D printers**

DXF and AI File Export for Manufacturing**

CAD File Export for Manufacturing**

Import CAD model for AR catalog***

Storage Space Measurement

Physics Mode for Packaging Test

*Platform converts CAD-compatible files to low-polygon models, which is tested with the Metavese-like system (not the actual Metaverse by Meta).
** The conversion process is available for free for a limited time
*** The system can accept some CAD-compatible files such as STL, STEP, IGES, X_T at this time but the list of acceptable files will be expanded.
